SATURNO® Narrow Diameter Implant System

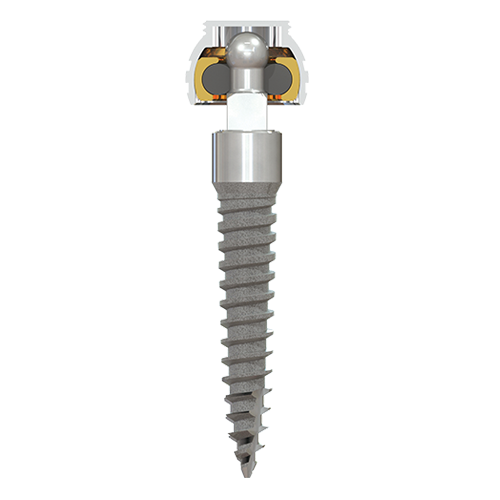

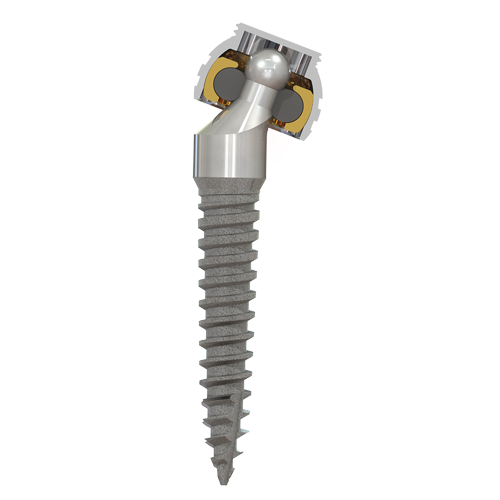

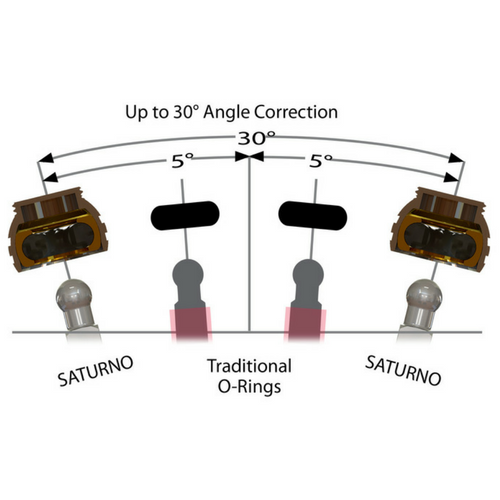

The SATURNO Narrow Diameter Implant is an innovative one-piece design that incorporates an exclusive pivoting O-Ball connection providing maximum resiliency while maintaining a minimized profile; technology currently not found in rigid connections of traditional O-Ball mini implants. SATURNO Implants are available in straight or a 20° angle for addressing common challenges associated with implant placement in the maxillary ridge. Patented pivoting technology incorporates a pivoting race inside the Denture Cap increasing resiliency and angle correction up to 30° with the 20° Angled Implant.

    This New Angle In Narrow Diameter Implants Provides:
  • Straight or 20° Angled Option for Anterior Maxilla
  • Smaller 1.8mm O-Ball Profile
  • Aggressive Thread Design for Primary Stability
  • Self-Tapping for Ease of Insertion and Increased Stability
  • Proven RBM Roughened Surface

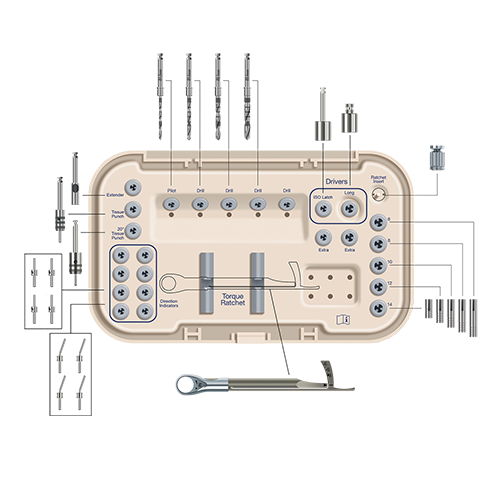

  • Intuitive Surgical Instruments with Simple Procedure
  • Cost Effective

  • Straight or 20° Angled Implants

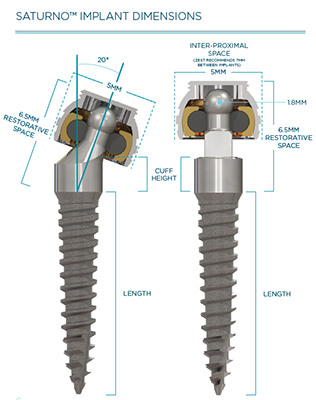

  • Implant Diameters: 2.0, 2.4 or 2.9mm
  • Implant Lengths: 10, 12 or 14mm
  • Cuff Heights: 2.0 and 2.4mm
  • Smaller 1.8mm O-Ball profile

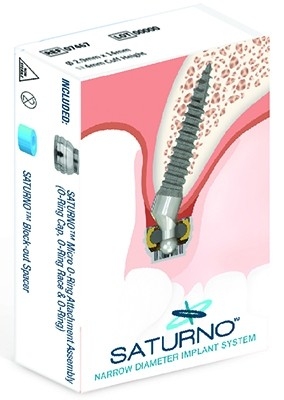

Convenient All-In-One Packaging
  • 1 SATURNO Implant (Straight or 20°)
  • 1 SATURNO O-Ring Attachment (2.0 or 4.0mm Cuff Height)

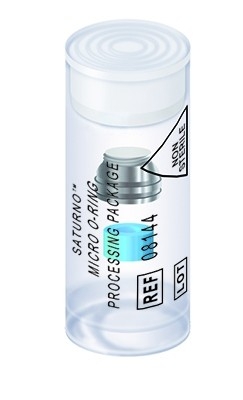

  • 1 Restorative Component Vial (includes once of each: Micro O-Ring Cap, O-Ring Race, O-Ring, and Block Out Spacer)
